HD Electric Underground Cable Fault Tester Kit - UCT-8/K01

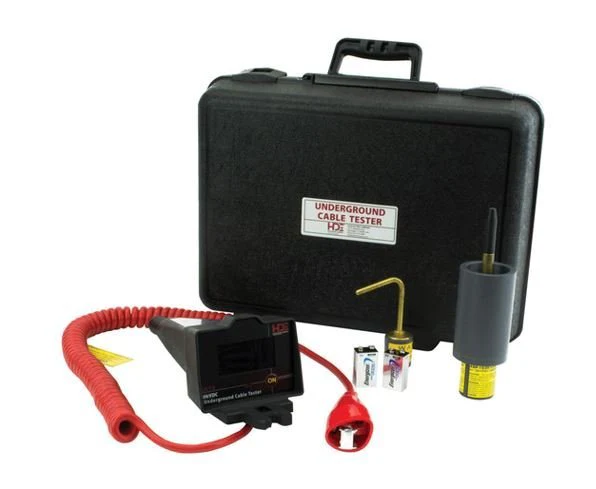

INCLUDES:

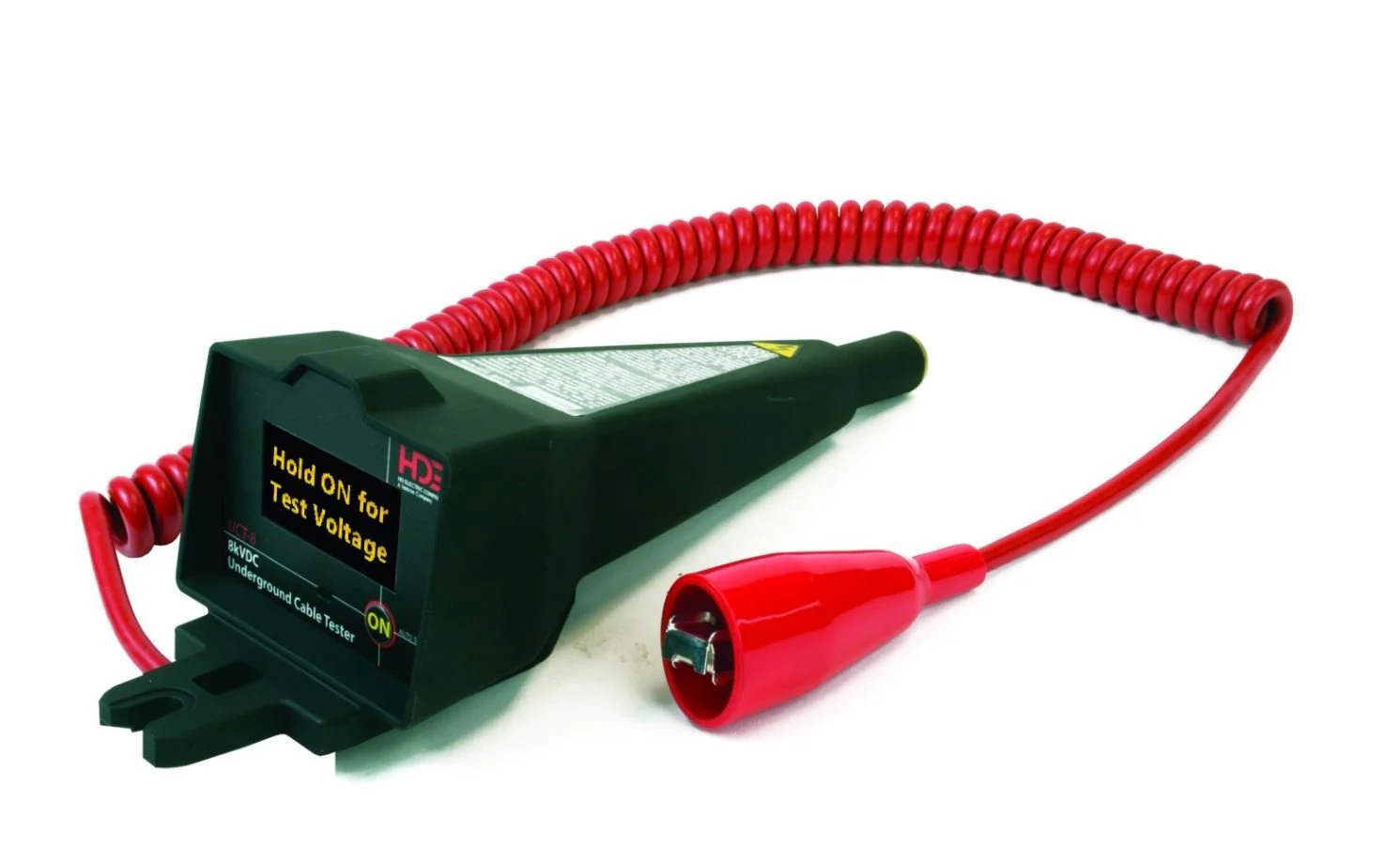

ā¢ (1) Underground Cable Fault Tester

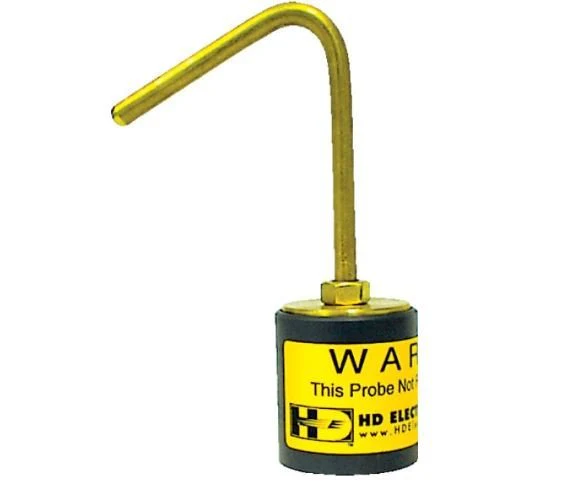

ā¢ (1) 025-OLPS-5 Overhead Hook Brass Probe
ā¢ (1) ASP-15/25 Underground Adapter Bushing Probe, 15kV & 25kV Class

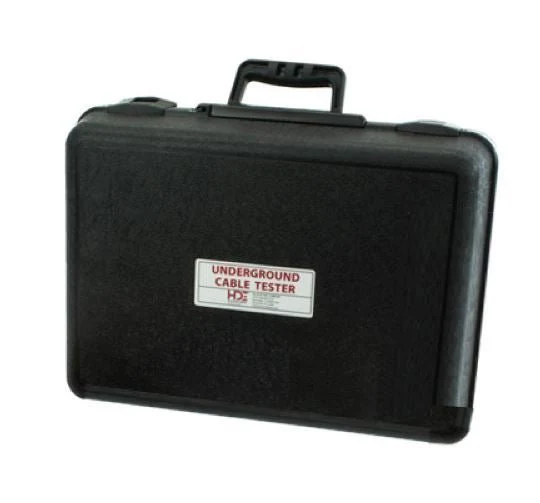

ā¢ (1) CS-UCT Case
FEATURES:
ā¢ Clear and simple test results shown on the large LED display, no interpretation needed
ā¢ Compact, single hot stick operation for testing cable
ā¢ Self-contained 8kV high voltage source powers the tester
ā¢ Easy to use ā one button test function
ā¢ Lightweight
ā¢ Field replaceable 9V lithium battery with low battery indication
SPECIFICATIONS:
ā¢ TEST VOLTAGE OUTPUT: 8kVDC
ā¢ OPERATING VOLTAGE RANGE: 50V-25kVAC line to ground
ā¢ OPERATING FREQUENCY: 50/60Hz
ā¢ ACCURACY: AC voltage, 5% of reading
ā¢ MAXIMUM CABLE LENGTH TESTED: 1500 ft. (457m)
ā¢ BATTERY: 9V lithium
ā¢ BATTERY LIFE: Approximately 40 tests on 300' of 250 Kcmil (non-faulted) cable, fewer on faulted cable
ā¢ OPERATING TEMPERATURE RANGE: +20Ā°F to +120Ā°F (-7Ā°C to +49Ā°C)
ā¢ DIMENSIONS (WITHOUT PROBES): 14" L x 4.6" W x 4.1" H (36cm x 12cm x 10cm)
ā¢ CORD LENGTH: Retracted: 3.5', extended 12'
**LEAD TIME FOR THIS ITEM IS 2-3 WEEKS**
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HD Electric Underground Cable Fault Tester Kit - UCT-8/K01
HD Electric Underground Cable Fault Tester Kit - UCT-8/K01
INCLUDES:
ā¢ (1) Underground Cable Fault Tester
ā¢ (1) 025-OLPS-5 Overhead Hook Brass Probe
ā¢ (1) ASP-15/25 Underground Adapter Bushing Probe, 15kV & 25kV Class
ā¢ (1) CS-UCT Case
FEATURES:
ā¢ Clear and simple test results shown on the large LED display, no interpretation needed
ā¢ Compact, single hot stick operation for testing cable
ā¢ Self-contained 8kV high voltage source powers the tester
ā¢ Easy to use ā one button test function
ā¢ Lightweight
ā¢ Field replaceable 9V lithium battery with low battery indication
SPECIFICATIONS:
ā¢ TEST VOLTAGE OUTPUT: 8kVDC
ā¢ OPERATING VOLTAGE RANGE: 50V-25kVAC line to ground
ā¢ OPERATING FREQUENCY: 50/60Hz
ā¢ ACCURACY: AC voltage, 5% of reading
ā¢ MAXIMUM CABLE LENGTH TESTED: 1500 ft. (457m)
ā¢ BATTERY: 9V lithium
ā¢ BATTERY LIFE: Approximately 40 tests on 300' of 250 Kcmil (non-faulted) cable, fewer on faulted cable
ā¢ OPERATING TEMPERATURE RANGE: +20Ā°F to +120Ā°F (-7Ā°C to +49Ā°C)
ā¢ DIMENSIONS (WITHOUT PROBES): 14" L x 4.6" W x 4.1" H (36cm x 12cm x 10cm)
ā¢ CORD LENGTH: Retracted: 3.5', extended 12'
**LEAD TIME FOR THIS ITEM IS 2-3 WEEKS**
Original: $3,000.00
-65%$3,000.00
$1,050.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
INCLUDES:
ā¢ (1) Underground Cable Fault Tester
ā¢ (1) 025-OLPS-5 Overhead Hook Brass Probe
ā¢ (1) ASP-15/25 Underground Adapter Bushing Probe, 15kV & 25kV Class
ā¢ (1) CS-UCT Case
FEATURES:
ā¢ Clear and simple test results shown on the large LED display, no interpretation needed
ā¢ Compact, single hot stick operation for testing cable
ā¢ Self-contained 8kV high voltage source powers the tester
ā¢ Easy to use ā one button test function
ā¢ Lightweight
ā¢ Field replaceable 9V lithium battery with low battery indication
SPECIFICATIONS:
ā¢ TEST VOLTAGE OUTPUT: 8kVDC
ā¢ OPERATING VOLTAGE RANGE: 50V-25kVAC line to ground
ā¢ OPERATING FREQUENCY: 50/60Hz
ā¢ ACCURACY: AC voltage, 5% of reading
ā¢ MAXIMUM CABLE LENGTH TESTED: 1500 ft. (457m)
ā¢ BATTERY: 9V lithium
ā¢ BATTERY LIFE: Approximately 40 tests on 300' of 250 Kcmil (non-faulted) cable, fewer on faulted cable
ā¢ OPERATING TEMPERATURE RANGE: +20Ā°F to +120Ā°F (-7Ā°C to +49Ā°C)
ā¢ DIMENSIONS (WITHOUT PROBES): 14" L x 4.6" W x 4.1" H (36cm x 12cm x 10cm)
ā¢ CORD LENGTH: Retracted: 3.5', extended 12'
**LEAD TIME FOR THIS ITEM IS 2-3 WEEKS**
